consuetudo facta AMC2 Gaston calces-typus explosio-probatio motoris pneumatici

Anhui Gaston Precision Machinery Co, Ltd. Home / Productum / Motor Pneumatica Series / Apparatus Pneumaticus Motor / AMC2 Gaston calces-typus explosio-probatio motoris pneumatici
  • AMC2 Gaston calces-typus explosio-probatio motoris pneumatici

AMC2 Gaston calces-typus explosio-probatio motoris pneumatici

Product description:
AMC2 calces pneumaticae motoris productum parametri:
Potentia: 2KW, horsepower: 3.3HP, torque: 5N.m, celeritas libera: 6400RPM, consumptio aeris: 2880L/min, pondus: 5.5-6.8KG (modi institutionis diversae, pondera diversae), tres modi institutiones in promptu sunt: ​​verticalis; genus horizontalis, discus, valvae imperium manuale ad libitum, fregit, calces reducens, moderatoris.

Signi lineamenta:
Usura aeris compressi ut fons potentiae tuta et explosionis probatio. Productum habet libellum explosione-probationis et signa salutis nationalis obviat. High speed and high torque will not burn due to overload. Celeritas gradatim accommodatur. Valvae moderatio ad initium, commensurationem, finemque flectendi adhibetur, ac partes anteriores et adversae statim inverti possunt. Motor autem ordinatur ut totum inclusum et in ambitu pulverulento, humido et aspero adhiberi potest. In chemicis industria, semiconductoribus, crystallis, petrochemicis, technicis diameticis, technicis pingendis, automation machinis aliisque industriis pingendis usus est.

Opus environment:
Liquor: Cogo caeli
Pressura utens: 5Kg/cm 2 (70psi)
Maximum opus pressura: 6Kg/cm 2 (85psi)
Ambiens temperatus: -10°C~ 70°C (tantum adhiberi potest in non-frigida re publica)
Oleum lubricatum: IS0VG32 vel simile. (Opus est oleum cum caligo olei, 2~3 guttae per minutias).
Continuus usus: Immo (continue sine onere currere non potest).
Commendatur celeritas: (0.3~1) x maximum output speed.

  • Detailed parametri

Exemplar

Opus pressura (Mpa)

Potestas

Celeritas Torque

Air Consumptio

gyratio

Pondus (KG)

Input Hose (mm) Size

Free Speed

Apud Max. HP

Max.Torque
HP KW rpm/min Nm Ibf. ft* L/MIN CFM Vertical Horizontal
AMC2 0.4 2.3 1.5 6000 3700 3.8 2.8 2160 76.3 Bidirectional 5.5 6.8 16
0.5 2.8 1.8 6200 3850 4.4 3.2 2400 84.8
0.6 3.3 2 6400 3800 5 3.7 2880 101.7
0.7 3.7 2.2 6500 3900 5.3 3.9 3240 114.4

Consilium Schematicum visum:

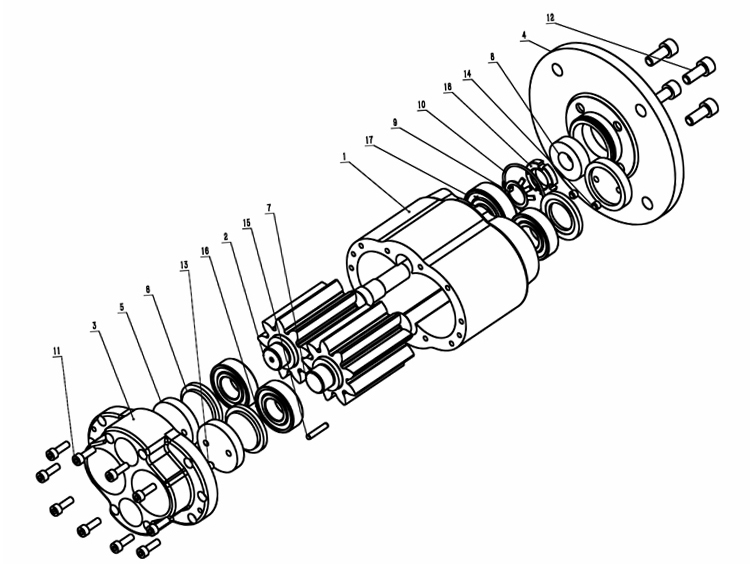

Product naufragii tabula:

NO. Nomen quantitas NO. Nomen quantitas
1 Motor habitationi 1 10 0-annulos 1
2 Motricium de hastili calces 1 11 Hexagon nervum caput stupra 10
3 Motor tergo cover 1 12 Hexagon nervum caput stupra 4
4 LABIUM circum 1 13 Plana punctum posuit stupra 4
5 Cap signatum 3 14 Plana punctum posuit stupra 2
6 Communem anulum 3 15 recta pin 1
7 repulsi hastile 1 16 Alta sulcus pila adferentem 3
8 Sigillum adipe 1 17 Alta sulcus pila adferentem 1
9 Subsisto washers per nuces 1 18 Rotundus nut 1
Antecedens: No previous article
Proximum: AMC4.2 Gaston calces motoriis pneumaticis reductione
