consuetudo facta AMP2 Gaston motor pneumaticus marinus

Anhui Gaston Precision Machinery Co, Ltd. Home / Productum / Motor Pneumatica Series / Piston Pneumatica Motor / AMP2 Gaston motor pneumaticus marinus
  • AMP2 Gaston motor pneumaticus marinus
  • AMP2 Gaston motor pneumaticus marinus
  • AMP2 Gaston motor pneumaticus marinus
  • AMP2 Gaston motor pneumaticus marinus

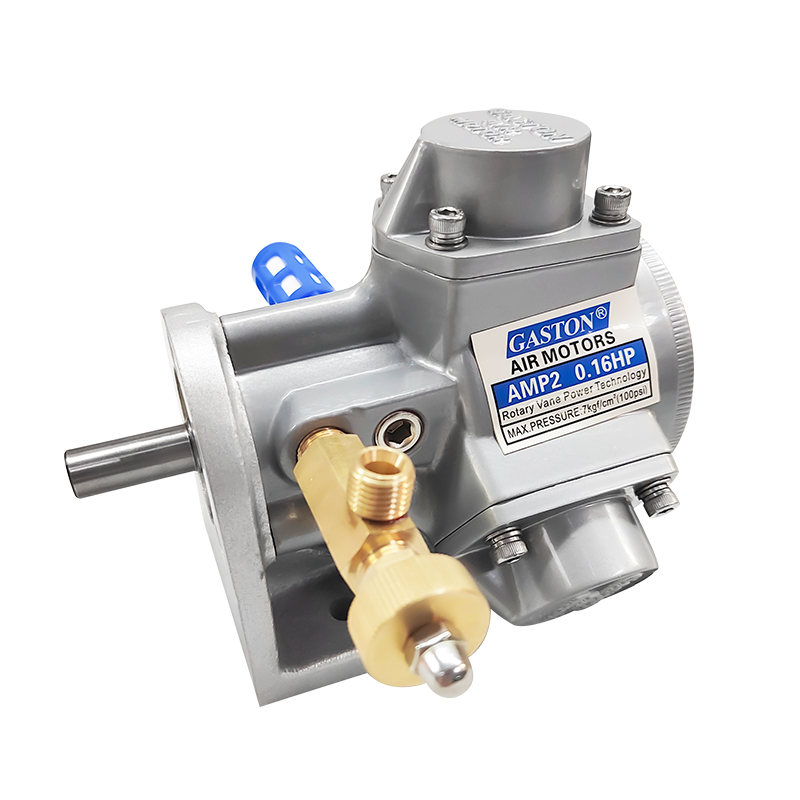

AMP2 Gaston motor pneumaticus marinus

AMP2 productum parametri:
Potentia: 0.12KW, horsepower: 0.16HP, torque: 0.95N.m, celeritas libera: 1200RPM, gas consummatio: 210L/min, pondus: 1.6-2.6KG (modi institutiones diversae, pondera diversa), quattuor modi institutiones in promptu sunt: ​​basic; verticalis, horizontalis, LABIUM, ad libitum valvae manualis imperium, fregit, calces reducens, moderatoris.

Signi lineamenta:
Usura aeris compressi sicut fons potentiae ad salutem et explosionem probationis, productus habet libellum explosione probationis et signa salutis nationalis occurrit. Princeps torques, humilis gas consummatio, non ardebit propter onerare, celeritas gradus minus temperatio, incipere, compono, desine per valvae commutationes, statim directionem mutare potest. Motor autem ordinatur ut totum inclusum et in ambitu pulverulento, humido et aspero adhiberi potest. Late adhibentur in industria chemica, semiconductores, crystallis, petrochemicals, technologiae diameticae, officinas pingunt, machinae automated et aliae industriae.

Opus environment:
Liquor: Cogo caeli
Pressura utens: 5Kg/cm 2 (70psi)
Maximum opus pressura: 6Kg/cm 2 (85psi)
Ambiens temperatus: -10°C~ 70°C (tantum adhiberi potest in non-frigida re publica)
Oleum lubricatum: IS0VG32 vel simile. (Opus est oleum cum caligo olei, 2~3 guttae per minutias).
Continuus usus: Immo (continue sine onere currere non potest).
Commendatur celeritas: (0.3~1) x maximum output speed.

  • Detailed parametri

Exemplar Ratio calces Maximum Output Armen Torque Pondus (KG)
Potestas Torque Rated Speed Aeris consummatio Basic Vertical Horizontal
HP KW N.m Ibf. ft** R.P. Mmin L/min CFM N.m Ibf. ft KG KG KG
AMP2 0.1 0.12 0.95 0.7 1200 210 7.4 1.5 1.1 1.6 2.1 2.6
G1/3 2.7 2 400 4.4 3.2 " 7.2 7.4
G1/5 4.4 3.2 240 7.1 5.2
G1/10 8.7 6.4 120 14.2 10.5
G1/15 13.1 9.7 80 21.2 15.6 " 8.5 8.7
G1/20 17.3 12.8 60 27.9 20.1

Consilium Schematicum visum:

AMP2-T (Basic type) AMP2-F (Vertical)
AMP2-L. AMP2-IEC (Flange genus)

Product naufragii tabula:

NO. Nomen quantitas NO. Nomen quantitas NO. Nomen quantitas
1 habitationem 1 12 Corpus Gasket 2 23 Vent stupra 1
2 Distribuens valvae 1 13 Gasket 3 24 Motor cover 1
3 Coegi finem supportantes 1 14 Locate gasket 2 25 Crankshaft stupra 1
4 fusum 1 15 Rollerus adferentem 2 26 Tracheal plug 1
5 Shalf Sigillum 1 16 Caput tabernaculi cochleae 12 27 Plug 2
6 Foraminis card vere 1 17 Cylindrus liner 3 28 Muffler 1
7 Coegi finem supportantes 1 18 O inaures 3 29 Quadratus LABIUM 1
8 Circlip 1 19 Caput cylindricum 3 30 Horizontalis lamina 1
9 Piston 3 20 O inaures 3 31 LABIUM circum 1
10 Connectens virga 3 21 Ver washer 12
11 pin subsisto 3 22 O-rings 1
Antecedens: AMP1 Gaston princeps potentia piston pneumatica motoria
Proximum: AMP3 Gaston piston reductio motoris pneumatici
