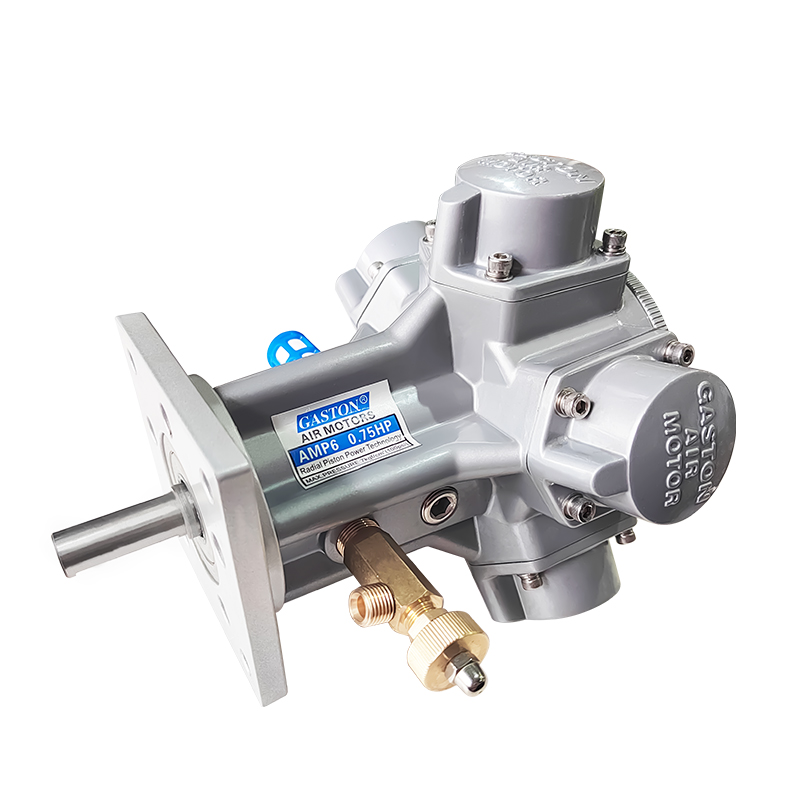

AMP6 Gaston Minimum Speed ​​Aeris Motor

AMP6 parametri productum:
Potentia: 0.56KW, horsepower: 0.75HP, torque: 7.6N.m, celeritas libera: 1200RPM, gas consummatio: 504L/min, pondus: 5.6-6.9KG (modi institutiones diversae, pondera diversa), quattuor modi institutionis praesto sunt: ​​basic; verticalis, horizontalis, LABIUM, ad libitum valvae manualis imperium, fregit, calces reducens, moderatoris.

Signi lineamenta:
Usura aeris compressi sicut fons potentiae ad salutem et explosionem probationis, productus habet libellum explosione probationis et signa salutis nationalis occurrit. Princeps torques, humilis gas consummatio, non ardebit propter onerare, celeritas gradus minus temperatio, incipere, compono, desine per valvae commutationes, statim directionem mutare potest. Motor autem ordinatur ut totum inclusum et in ambitu pulverulento, humido et aspero adhiberi potest. Late adhibentur in industria chemica, semiconductores, crystallis, petrochemicals, technologiae diameticae, officinas pingunt, machinae automatariae et aliae industriae.

Opus environment:
Liquor: Cogo caeli
Pressura utens: 5Kg/cm 2 (70psi)
Maximum opus pressura: 6Kg/cm 2 (85psi)
Ambiens temperatus: -10°C~ 70°C (tantum adhiberi potest in non-frigida re publica)
Oleum lubricatum: IS0VG32 vel simile. (Opus est oleum cum caligo olei, 2~3 guttae per minutias).
Continuus usus: Immo (continue sine onere currere non potest).
Commendatur celeritas: (0.3~1) x maximum output speed.

  • Detailed parametri

Exemplar Ratio calces Maximum Output Armen Torque Pondus (KG)
Potestas Torque Rated Speed Aeris consummatio Basic Vertical Horizontal
HP KW N.m Ibf. ft** R.P. Mmin L/min CFM N.m Ibf. ft KG KG KG
AMP6 0.75 0.56 7.6 5.6 650 504 17.8 11.5 8.5 5.6 6 6.9
G1/3 21.7 16 216 31.5 23.2 " 12.4 12.6
G1/5 35.6 26.3 180 49.5 36.5
G1/10 72 53.1 90 100.3 74
G1/15 106.2 78.4 60 155.1 114.5 " 15 15.2
G1/20 141.5 104.4 45 206.6 152.5
G1/30 209.5 154.6 30 305.7 225.6
G1/40 276.5 204.1 22.5 412.4 304.4
G1/50 345.3 254.8 18 506.6 373.9
G1/60 414.6 306 15 609.2 449.6
G1/80 542.5 400.4 11.2 805.3 594.3

Consilium Schematicum visum:

AMP6-T(Basic type) AMP6-F (Vertical)
AMP6-L (Horizontal) AMP6-IEC (Flange genus)

Product naufragii tabula:

NO. Nomen quantitas NO. Nomen quantitas NO. Nomen quantitas
1 habitationem 1 12 Gasket 5 23 O inaures 1
2 Distribuens valvae 1 13 Corpus Gasket 2 24 Motor cover 1
3 Coegi finem supportantes 1 14 O inaures 2 25 LABIUM circum 1
4 fusum 1 15 Rollerus adferentem 1 26 Vent stupra 1
5 Shalf Sigillum 1 16 Crankshaft stupra 1 27 Quadratus LABIUM 2
6 Foraminis card vere 1 17 Cylindrus liner 5 28 Horizontalis lamina 1
7 Coegi finem supportantes 1 18 O inaures 5 29 Muffler 1
8 Circlip 1 19 Caput cylindricum 5 30 Tracheal plug 1
9 Piston 5 20 O inaures 5 31 Plug 2
10 Connectens virga 5 21 Ver washer 20
11 pin subsisto 5 22 Caput tabernaculi screw 20
