consuetudo facta AMP4-RV Maximum celeritate torques aeris motoriis

Anhui Gaston Precision Machinery Co, Ltd. Home / Productum / Motor Pneumatica Series / Reductio pneumatica motor / AMP4-RV Maximum celeritate torques aeris motoriis
  • AMP4-RV Maximum celeritate torques aeris motoriis

AMP4-RV Maximum celeritate torques aeris motoriis

AMP4-RV Aureus humilis-celeritate alta parametri pneumatici producti motoris:
Reductio ratio range: 7.5-80, potentia: 0.24KW, horsepower: 0.33HP, torque: 17.5-184.7N.m, celeritas libera: 93-8.5RPM, consumptio aeris: 0.31m³/min, pondus: 6.5-8.0KG (reductio diversae rationes, pondera diversa), modi institutionis ad libitum: verticalis, horizontalis, optional potestate manualis valvae, fregit, moderatoris.

Signi lineamenta:
Usura aeris compressi sicut fons potentiae ad salutem et explosionem probationis, productus habet libellum explosione probationis et signa salutis nationalis occurrit. Calces helicae reducens potestate valvae utitur ad mutandum initium, temperatio, et desine, et statim directionem convertere potest. Motor altiore consilio inclusum habet et in ambitu pulverulento, humido et aspero adhiberi potest. Late usus est in industria chemicis, semiconductoribus, crystallis, petrochemicis, technicis diameticis, officinis pingendis, machinatione automata aliisque industriis.

Opus environment:
Liquor: Cogo caeli
Pressura utens: 5Kg/cm 2 (70psi)
Maximum opus pressura: 6Kg/cm 2 (85psi)
Ambiens temperatus: -10°C~ 70°C (tantum adhiberi potest in non-frigida re publica)
Oleum lubricatum: IS0VG32 vel simile. (Opus est oleum cum caligo olei, 2~3 guttae per minutias).
Continuus usus: Immo (continue sine onere currere non potest).
Commendatur celeritas: (0.3~1) x maximum output speed.

  • Detailed parametri

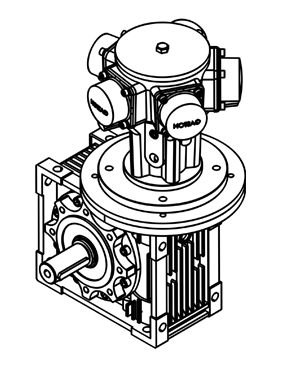

Installation dimensionem drawing

Installation dimensionem mensam

reducer Exemplar PM PQ^^ PN PO* PP

RV50

85

3.3"

110

4.3"

70

2.8"

11

0.43 "

125

4.9"

RV63

150

5.9"

142

5.6"

115

4.5"

11

0.43"

180

7.1"

RV75

165

6.5"

170

6.7"

130

5.1"

14

0.55"

200

7.9"

Product Model

A

B

C

C1

D

(h7)

E

G

H

I

M

N

O

P

Q

R

S

T

V

PA

PB*

PC

PE

PM

PN

(H8)

PO

PP

PQ

b

t

AMP4-RV50-G7.5

120

4.72"

144

5.67"

80

3.15"

70

2.76"

25

0.98"

70

2.76"

85

3.35"

85

3.35"

80

3.15"

92

3.62"

60

2.36"

84

3.31"

50

1.97"

100

3.94"

64

2.52"

65

0.26"

30

1.18"

7

0.38"

40

1.57"

90

3.54"

9

0.35"

5

0.2"

M8X10(n=4)

85

3.35"

70

2.76"

11(n=4)

0.43"

125

1.92"

110

4.33"

8

0.31"

283

1.11"

AMP4-RV50-G10

AMP4-RV50-G15

AMP4-RV50-G20

AMP4-RV63-G25

144

5.67"

174

6.85"

100

3.94"

85

3.35"

25

0.98"

80

3.15"

103

4.06"

95

3.74"

95

3.74"

112

4.41"

72

2.83"

102

4.02"

63

2.48"

110

4.33"

80

3.15"

85

0.33"

36

1.42"

8

0.31"

50

1.97"

82

3.23"

10

0.39

6

0.24"

M8X10(n=4)

150

5.91"

115

4.53"

11(n=4)

0.43"

180

7.09"

142

5.59"

8

0.31"

283

1.11"

AMP4-RV63-G30

AMP4-RV63-G40

AMP4-RV75-G50

172

6.8"

205

8.1"

120

4.7"

90

3.5"

28

1.1"

95

3.7"

112

4.4"

115

4.5"

112.5

4.4"

120

4.7"

86

3.4"

119

4.7"

75

3"

140

5.5"

93

3.7"

11

0.43"

40

1.6"

10

0.39"

60

2.4"

111

4.4"

13

0.5"

6

0.23"

M8X10(n=4)

165

6.5"

130

5.1"

14(n=4)

0.55"

200

7.9"

170

6.7"

8

0.31"

313

12"

AMP4-RV75-G60

AMP4-RV75-G80

Technical Data Sheet

Product Model

Potestas

celeritas rated

Torque

Armen Torque

Aeris consummatio

Pondus

(HP)

(kw)

(rpm)

(Nm)

(Lft. bt)

(Nm)

(Lft. bt)

(m³/min)

(CFM)

(KG)

AMP4-RV50-G7.5

0.33

0.24

93

17.5

12.9

27.5

20.3

0.31

11

6.5

AMP4-RV50-G10

68

23.5

17.3

36.8

27.2

AMP4-RV50-G15

45

34.6

25.5

54.6

40.3

AMP4-RV50-G20

35

46.5

34.3

73.5

54.2

AMP4-RV63-G25

27

57.8

42.7

91.6

67.6

AMP4-RV63-G30

22.5

70.2

51.8

110.8

81.8

AMP4-RV63-G40

17

92.5

68.3

146.2

107.9

AMP4-RV75-G50

13.5

115.6

85.3

183.5

135.4

8.0

AMP4-RV75-G60

11

138.4

102.1

219.4

161.9

AMP4-RV75-G80

8.5

184.7

136.3

292.7

216
